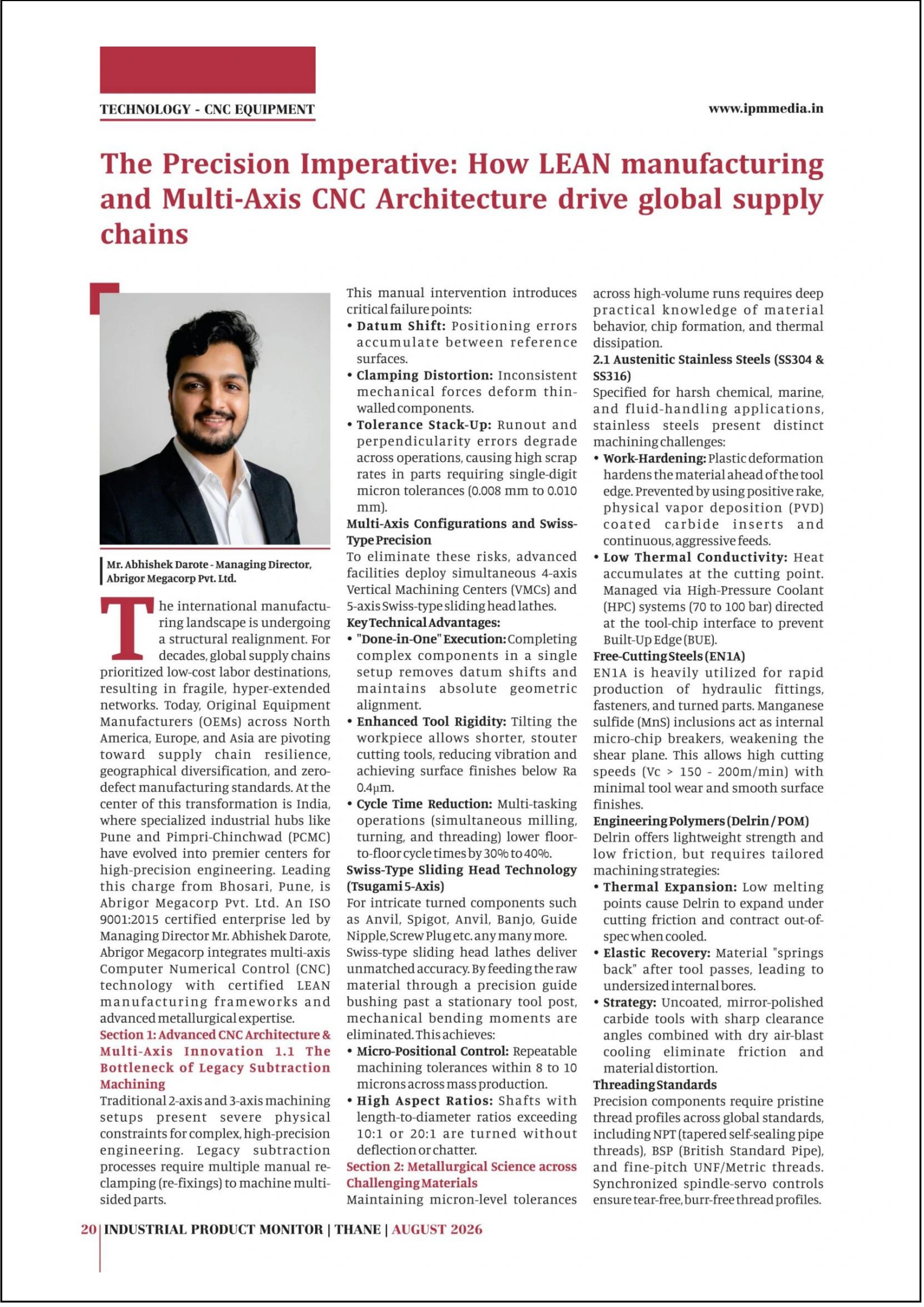

Section 1: Advanced CNC Architecture & Multi-Axis Innovation

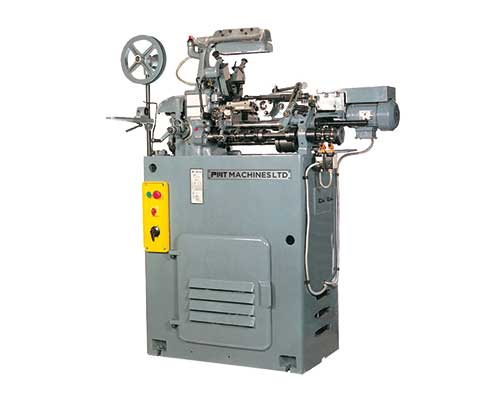

1.1 The Bottleneck of Legacy Subtraction Machining

Traditional 2-axis and 3-axis machining setups present severe physical constraints for complex, high-precision engineering. Legacy subtraction processes require multiple manual re-clamping (re-fixings) to machine multi-sided parts.

This manual intervention introduces critical failure points:

• Datum Shift: Positioning errors accumulate between reference surfaces.
• Clamping Distortion: Inconsistent mechanical forces deform thin-walled components.
• Tolerance Stack-Up: Runout and perpendicularity errors degrade across operations, causing high scrap rates in parts requiring single-digit micron tolerances (0.008 mm to 0.010 mm).

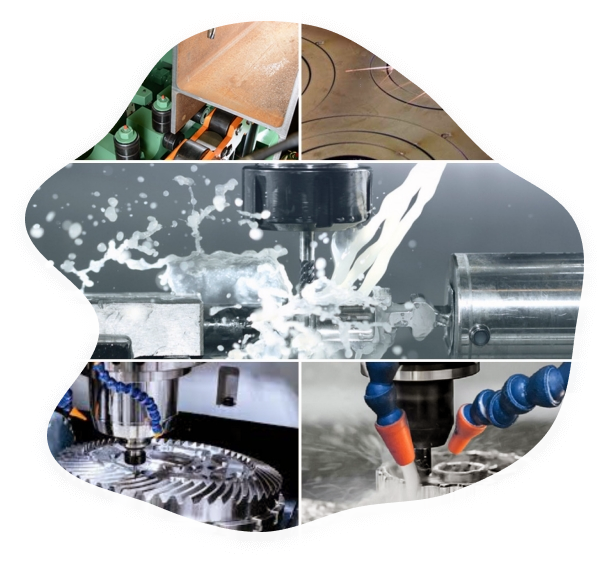

Multi-Axis Configurations and Swiss-Type Precision

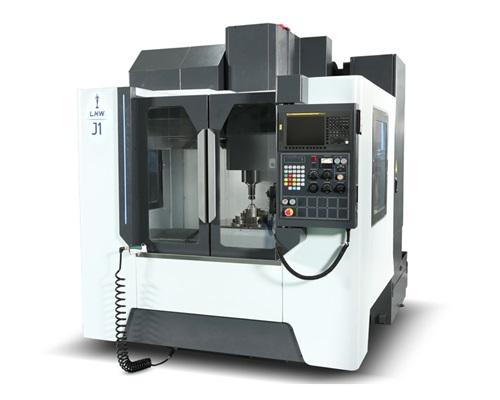

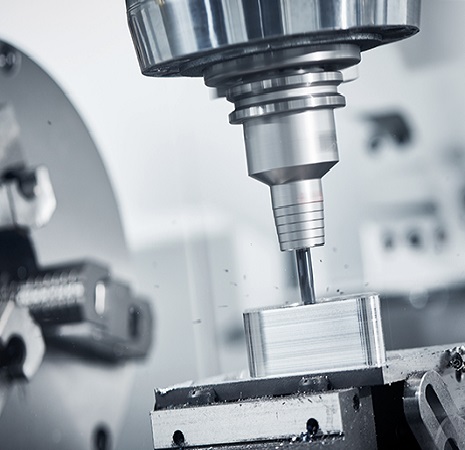

To eliminate these risks, advanced facilities deploy simultaneous 4-axis Vertical Machining Centers (VMCs) and 5-axis Swiss-type sliding head lathes.

Key Technical Advantages:

• "Done-in-One" Execution: Completing complex components in a single setup removes datum shifts and maintains absolute geometric alignment.
• Enhanced Tool Rigidity: Tilting the workpiece allows shorter, stouter cutting tools, reducing vibration and achieving surface finishes below Ra 0.4 µm.
• Cycle Time Reduction: Multi-tasking operations (simultaneous milling, turning, and threading) lower floor-to-floor cycle times by 30% to 40%.

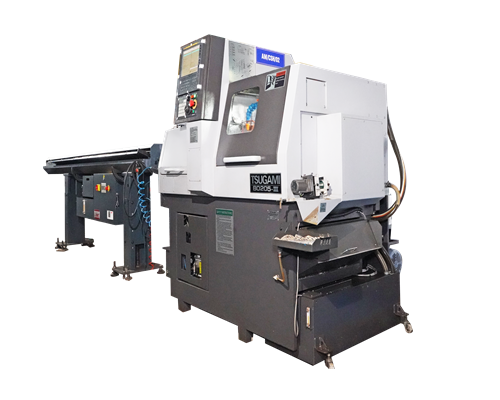

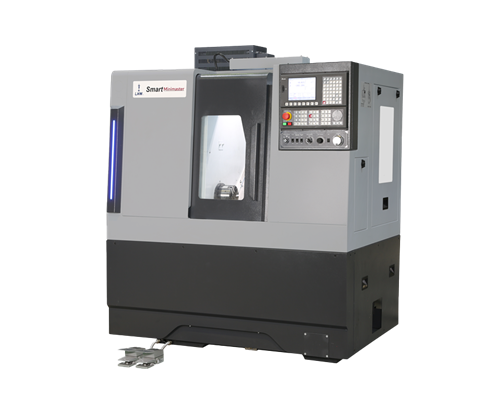

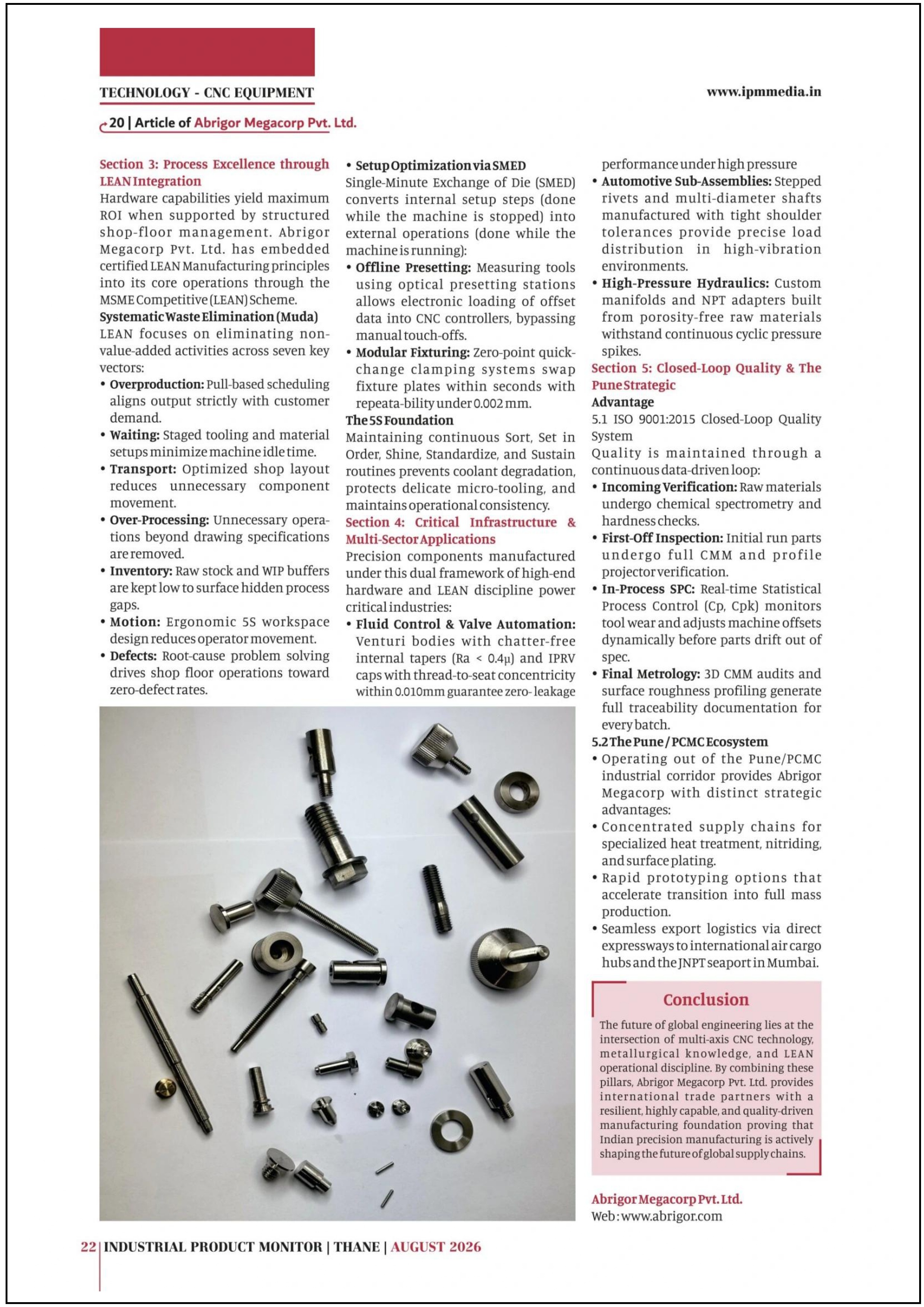

Swiss-Type Sliding Head Technology (Tsugami 5-Axis)

For intricate turned components such as Anvil, Spigot, Anvil, Banjo, Guide Nipple, Screw Plug, etc. and many more, Swiss-type sliding head lathes deliver unmatched accuracy.

By feeding the raw material through a precision guide bushing past a stationary tool post, mechanical bending moments are eliminated. This achieves:

• Micro-Positional Control: Repeatable machining tolerances within 8 to 10 microns across mass production.
• High Aspect Ratios: Shafts with length-to-diameter ratios exceeding 10:1 or 20:1 are turned without deflection or chatter.

Section 2: Metallurgical Science Across Challenging Materials

Maintaining micron-level tolerances across high-volume runs requires deep practical knowledge of material behavior, chip formation, and thermal dissipation.

2.1 Austenitic Stainless Steels (SS304 & SS316)

Specified for harsh chemical, marine, and fluid-handling applications, stainless steels present distinct machining challenges:

• Work-Hardening: Plastic deformation hardens the material ahead of the tool edge. Prevented by using positive rake, physical vapor deposition (PVD) coated carbide inserts and continuous, aggressive feeds.
• Low Thermal Conductivity: Heat accumulates at the cutting point. Managed via High-Pressure Coolant (HPC) systems (70 to 100 bar) directed at the tool-chip interface to prevent Built-Up Edge (BUE).

Free-Cutting Steels (EN1A)

EN1A is heavily utilized for rapid production of hydraulic fittings, fasteners, and turned parts. Manganese sulfide (MnS) inclusions act as internal micro-chip breakers, weakening the shear plane. This allows high cutting speeds (Vc > 150 - 200 m/min) with minimal tool wear and smooth surface finishes.

Engineering Polymers (Delrin / POM)

Delrin offers lightweight strength and low friction, but requires tailored machining strategies:

• Thermal Expansion: Low melting points cause Delrin to expand under cutting friction and contract out-of-spec when cooled.
• Elastic Recovery: Material "springs back" after tool passes, leading to undersized internal bores.
• Strategy: Uncoated, mirror-polished carbide tools with sharp clearance angles combined with dry air-blast cooling eliminate friction and material distortion.

Threading Standards

Precision components require pristine thread profiles across global standards, including NPT (tapered self-sealing pipe threads), BSP (British Standard Pipe), and fine-pitch UNF/Metric threads.

Synchronized spindle-servo controls ensure tear-free, burr-free thread profiles.
